Prototyping interactions between physical and visual interfaces

Using React and NodeJS for rapid prototyping interactions between physical and visual interfaces.

When it comes to prototyping physical interactions with visual interfaces, Arduino and Processing are probably one of the first things that come to mind. But so is how tedious it can be to handle data streams between Arduino and Processing or how adventurous it is to mock up GUIs in Processing.

The year is 2021, and today we can leverage modern web technologies to rapid prototype frontends that respond to our Arduino sensors. In this article, I’d like to show you one approach to using Johnny-Five and a modern JavaScript framework of your choice to prototype user interfaces, quickly validate your ideas, or just toy around.

This way of JavaScript-fueled prototyping comes with some sweet advantages:

• Speed. When it comes to prototyping, time is often the most limiting factor. Save time by quickly bootstrapping visual interfaces with a markup language you already know: HTML and CSS.
• Device agnostic. Build a prototype once and serve it to all browser-enabled devices in your local network.
• More actual prototyping. Spend less time convincing your Arduino to spit out your sensor data and more time actually prototyping with the data. Through abstractions provided by the Johnny-Five library, we can initialize, listen and talk to our board with just a few lines of code.

How it works

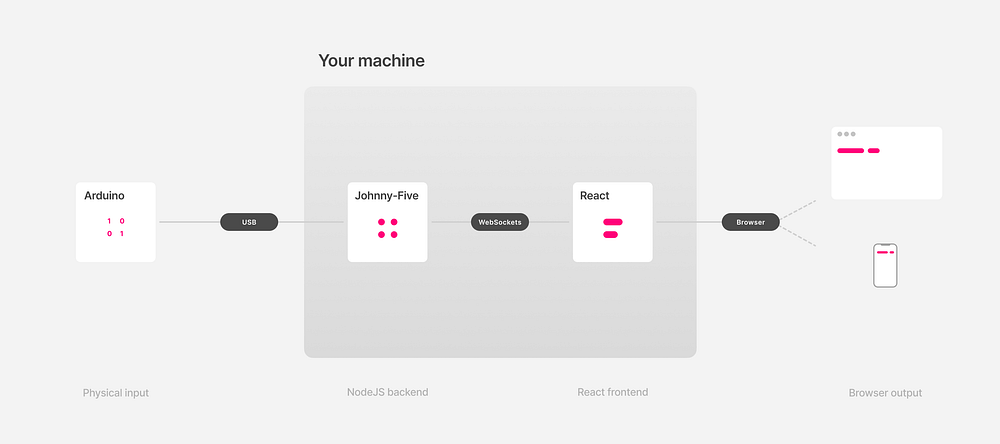

The prototype setup consists of a NodeJS backend and React frontend.
The backend is a NodeJS server that communicates with our microcontroller using Johnny-Five, a JavaScript IoT and Robotics library. The data from our microcontroller is then exchanged between the NodeJS backend and the React frontend using WebSockets. Our React frontend, an ‘ordinary’ React web app, translates the data changes into a reactive user interface.

Heads up

For this article, I’ll assume that you’re familiar with basic Arduino prototyping, common web technologies and have worked with JavaScript, JavaScript frameworks, and the Node/NPM ecosystem before. If you have not, you can still tag along, but I won’t go into detail because there are too many core concepts that would’ve to need to be covered.

If you feel lost, I recommend getting a little bit familiar with JavaScript and NodeJS first and also look into NPM, NodeJS’s package manager. I also recommend getting familiar with ReactJS or any other JS framework you might use (ex. VueJS)

Prototyping interactions between physical and visual interfaces

To see how such a js-enabled prototyping setup looks like in practice, we’ll build a simple web app with a tachometer that reacts to the input of a potentiometer. While simple enough, this will show the core principles and can be easily modified or extended for more advanced prototypes.

The finished code is available on GitHub, together with more advanced examples — but more to that later.

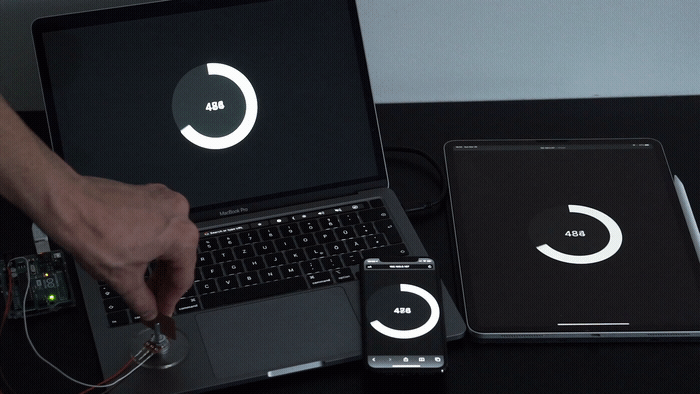

Turning the potentiometer updates the value on all clients that are connected to the React app.

What you’ll need

For your first prototyping session, you’ll need…

• 💻 a host machine, ex. your laptop or desktop pc
• 🟦 a microcontroller, we’ll use an Arduino
• 🕹 ️a sensor, we’ll use a potentiometer
• 🔌 the usual: jump wires to connect the sensor to your board, a USB cable to connect your board to your host machine, a code editor, and your favorite command line

Prerequisite

1. Make sure that NodeJS is installed on your host machine.
2. Make also sure that your Arduino board is flashed with the StandardFirmata firmware. This will ensure that our Node backend can make sense of what our Arduino is talking about.
   Use your Arduino IDE to check your firmware or flash your board (Connect your board via USB, then in your Arduino IDE File > Examples > Firmata > StandardFirmataPlus ) or refer to the Johnny-Five docs
3. Install Johnny-Five’s global dependencies (which depend on your OS, refer to the Johnny-Five docs).
   I’m working on macOS, so I’ll need to install Xcode and node-gyp as well
4. These steps only need to be followed once per machine. Once set up, you can get started right away for future prototyping sessions

🧰 Setting up the backend

We will start with setting up the backend for our prototype. Our backend is a NodeJS server that will talk and listen to our Arduino board using Johnny-Five. The backend is the heart of our prototype because it is the interface between our React front-end and our physical Arduino board.

1. Initialize your project. Create a new directory for your prototype
2. Change to the created directory and run npm init -y from your terminal to initialize a new project using NPM

npm init -y will create a default package.json file

2. Install Johnny-Five. The Johnny-Five library is the heart of our backend because it allows us to talk and listen to our Arduino board. Install it locally by running npm i johnny-five from your terminal within your project folder.

3. Creating the server. Now it’s time to create the NodeJS server. This is where Johnny-Five will live.

Create a new server.js file in the root of your directory.

In the server file, we want to accomplish two things:

• First, we want to create an HTTP server instance. This is basically us saying: “We want to make our server.js a web server so we can access it from the outside.”
• Second, we want to initialize our Arduino board using Johnny-Five. In this case, initializing means that we tell our server.js what we expect a connected Arduino board and we expect some sensors attached to it.

Paste the following code in your server.js and let’s break it down afterward.

Let’s break this down:

• Line 2–3 — First, we create an HTTP server instance and specify the port. We only need to specify the port because the address is localhost by default
• Line 6–7 — Next, we pull out the Board and Sensor class from Johnny-Five to initialize our Arduino board.
  We always need Board to initialize our board. Since we plan to prototype with a Potentiometer, we also need Johnny-Fives Sensor API.
• Line 10-12 —Once the board has been initialized, we want to tell our server file that we expect a sensor on pin A0.
  Johnny-Five has a handy board.on("ready") method that runs once the board has been initialized. Let’s use it and assign our sensor inside the function. By the way, which pin you assign is entirely on your own.
• Line 15–18 —Similar to our board.on() method, Johnny-Five provides us with a Sensor.on("change") method that runs every time a sensor value changes. Let’s use it and console.log the sensor’s raw value every time there is a change (refer to the Sensor API to see what data you can pull)
• Finally, we will spin up our server using the server’s listen() method. This is basically firing up the HTTP server that we initialized on Line 2-3

Now, we should be able to start our server by running node server from our project directory — but, we haven’t connected our Arduino yet.

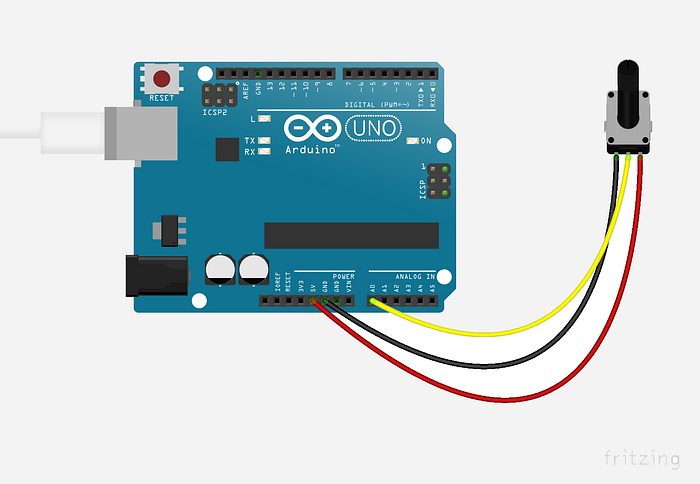

4. Hook up your Arduino. Connect the potentiometer to your Arduino board (make sure to use the pin specified in the code, if you followed the tutorial it’ll be pin A0) and connect your Arduino to your machine’s USB port.

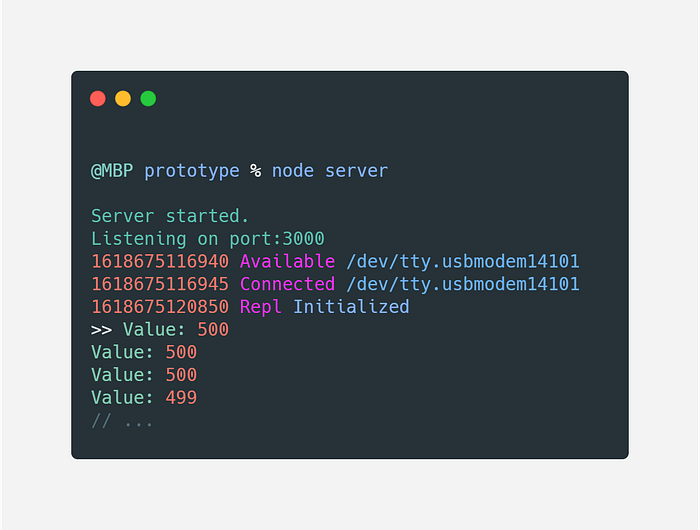

5. Do a test run. Start your node server by running node server in your terminal. You should see the console.logged sensor value we specified earlier in your server’s console.

6. Troubleshooting. If you can’t get your board or server running right away, there are unfortunately a multitude of possible causes. If the problem is with the serial connection between your machine and your board, usually J5 will give you ample information about this in the console. One cause could be that your Arduino firmware is not correct (see step 0 or refer to the J5 setup guide) or you have not installed all dependencies.

🖼️ Setting up the frontend

Next, we will create our React frontend. The React frontend will receive the sensor value from our backend and will display in the browser to all connected clients.

1. Scaffold a React app. Let’s start by scaffolding a minimum viable react app

npm i react react-dom && npm i -D @babel/core @babel/preset-env @babel/preset-react babel-loader webpack webpack-cli webpack-dev-server html-webpack-plugin

This will install React, Babel (to make sure that our browser can understand React’s JSX syntax), and Webpack (to bundle our React app and serve it to our browser for development).

2. After installing all dependencies, let’s continue by creating the necessary files for your React app.

🗃️ Create the React entry files.
Create a src/subfolder and create a index.html and index.jsfile in that folder. This is where your React app will live.

⚙️ Create a webpack config file.

Webpack bundles our React app and serves it to the browser so that we can later access our prototype through the browser and from other devices.
Let’s instruct webpack what to do with our React app by creating a webpack.config.js file in the root of our project folder.

Don’t worry about this file too much. Basically, we tell Webpack about the location of the entry files we created earlier and that Webpack should them to serve our React app. Next, we instruct Webpack to use Babel to transpile React’s JSX syntax. In other words: our web browser only understands JavaScript, but React uses an extension of JavaScript, JSX. What Babel does is to ‘translate’ JSX to JS so other browsers understand what’s going on.

⚙️ Create a Babel config file.
Just telling Webpack to use Babel is not enough. We also have to tell Babel itself what it should do. Let’s create a .babelrc file in the root of our project and add the React presets to it.

📝 Modify your package.json
We could now serve our React app to the browser by running npx webpack serve --mode=development --host 0.0.0.0 , but this is pretty verbose and difficult to remember.
Let’s modify our package.json file and add a “serve” script so that we can use npm run serve as a shorthand to serve our React app.

We’re almost there. Make sure that everything works by running npm run serve in your terminal and navigating to your React app in your browser (usually at localhost:8080). You should see a blank page with a “Value: …” headline.

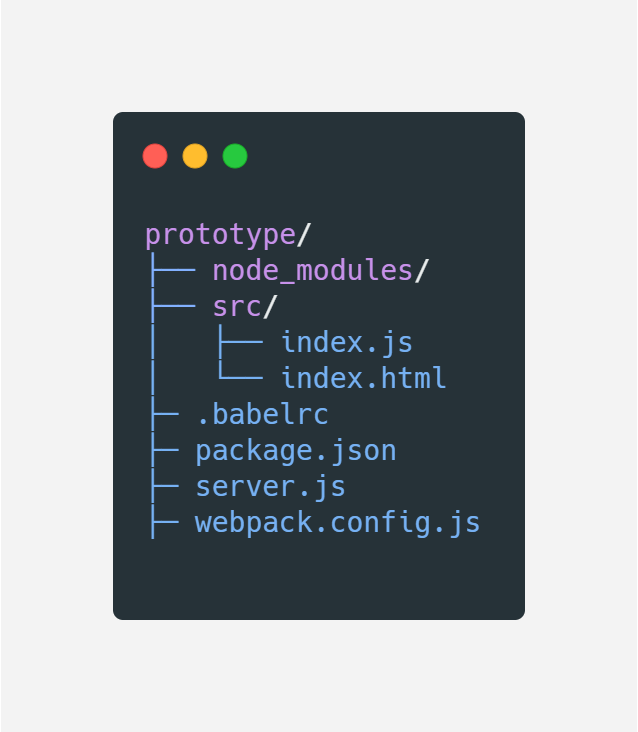

Your project structure now should look like this:

Tip: To save the tedious task of setting up a React app every time, I recommend creating your own customized boilerplate and storing it in a git repository so you can clone it for future prototyping sesh’s.

🤝 Connecting the frontend and backend

Now that we have created some frontend boilerplate and a backend, it’s time to connect our React app to our NodeJS server in order to display the Potentiometer’s real-time value.

For this, we’re going to use Socket.IO, a WebSockets implementation for JavaScript. First, install socket.io and socket.io-client, a client wrapper that makes life a lot easier: npm i socket.io socket.io-client

Next, we have to do two things:

1. We have to create a socket server instance — luckily, we can do this in our NodeJS server that we already have. This allows us to broadcast the sensor’s value to all connected clients.
2. We have to tell our React app, our client, what a socket server is and how it can listen to the value that the socket server broadcasts.

✨ Creating a socket server instance

Let’s modify our server.js and initialize a socket server instance.

Two things changed:

• First, we initialized a socket server instance. We also added a CORS rule so every device is allowed to communicate with our server.
• Second, we added a io.emit in our poti.on('change') handler. This will broadcast a custom poti_change event and the current Poti value to all connected clients.

👂 Listening to our socket server

Now all that’s left to do is to tell our React app that it has to listen to our socket server’s poti_change event.

Open your src/index.js file and make some changes to it:

Let’s break this down:

• First, we import the socket.io client wrapper socketIOClient
• We specify the address of our socket server (which is our node server). Enter ipconfig in your terminal to get your machine’s local IP address. The port we specified in our server.js if you remember.
• Next, we bind our socket client instance to a constant for easier usage

Within our App function, we added the useState and useEffect hooks. This allows us to store the received Poti value and continuously listen to broadcast events from our socket server. If you look inside our useEffect hook, you can see that we listen to a poti_change event. This is the custom event we specified in our server.js .
Every time our app receives an poti_change event, it’ll update the Poti value in our app.

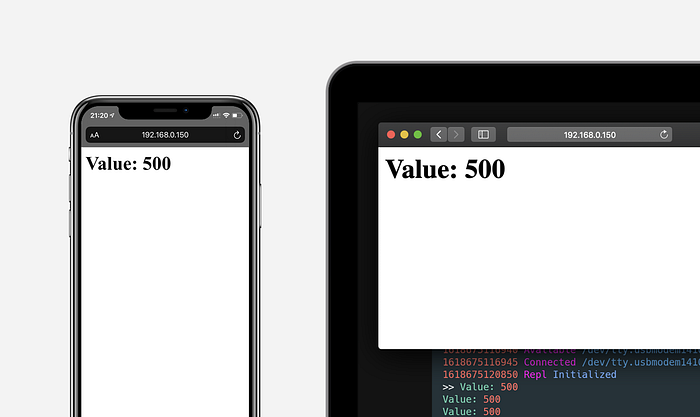

Et voilà! All that is left to do is to display the value. If everything is hooked up correctly, spin up your node server and serve your React app

node server & npm run serve

and navigate to your React app in your browser with any browser-enabled device within your local network (ex. your phone, tablet, or just your local machine).

💄 Styling the interface

Now that our React app ‘has access’ to the Poti value emitted from our board, we can do virtually anything with it. For the sake of this prototype, let’s throw together some lines of CSS and build a reactive tachometer.

Open your index.js file and add some styling and spice to your app.

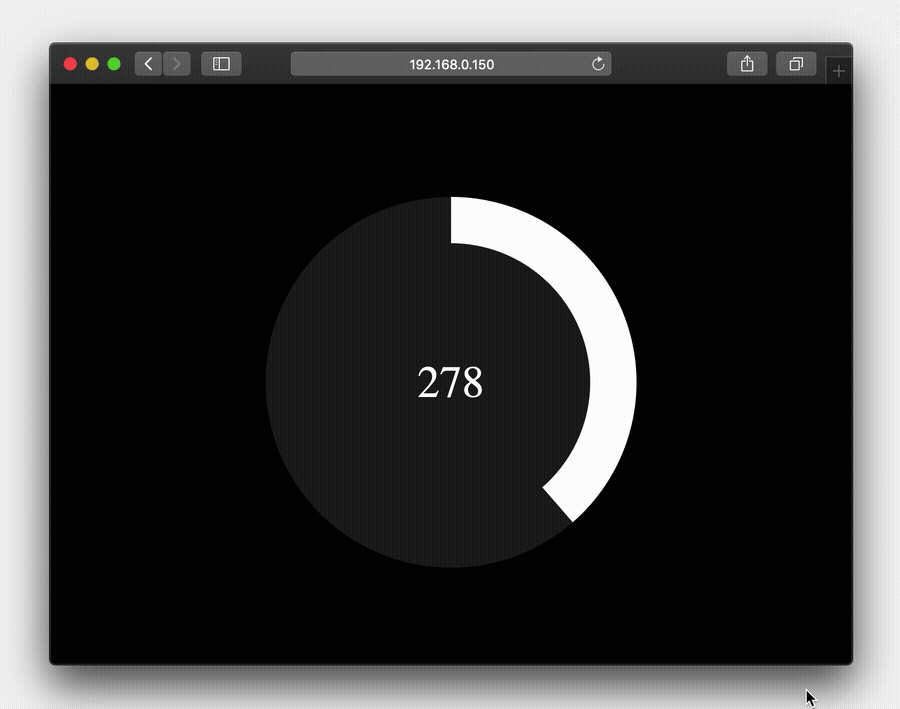

We achieve the actual tachometer by creating a div with a conic-gradient background property whose angle depends on the sensor’s value ( line 36 ).

🚀 Deploying the project?

Deploying our project to the web is per se not possible because we’re relying on the serial communication of our host machine. If you want to ‘deploy’ your project for e.g. external demos or user testing, there are different approaches you could take:

• You could make your socket server instance accessible from the web and point your React app at the public address
• If you want to keep things local, you could use a Raspberry Pi as the host machine and run the node server on your RPi

Each approach comes with different caveats, and I might save it for another article to go over them.

Wrapping up

The beauty of this kind of prototyping is that it abstracts away the tedious aspects of prototyping (ex. juggling data streams).
In just eight lines of code, we can listen to our Arduino’s data stream and pass the data to our web app for it to consume and process it — and in the whole thing, we don’t even have to touch code on the Arduino side once.
Since the entire visual interface lives in a website, we have the full range of web tools such as JS and CSS frameworks at our disposal.

For future prototyping sessions, it’s a good idea to tweak the folder structure to your liking and a create template, and store it in a git repository. That way, you can quickly scaffold a project and start building and prototyping.

The finished code is available on GitHub.

Where to go from here

In our example, the potentiometer and sensor API was just one way to bring a physical interaction into our web app. The Johnny-Five API documentation and example section give a good overview of what components are supported and how they can be used.

I’d like to conclude this article with two more examples of what other prototypes might look like. All of the examples, including the Poti prototype, are hosted on GitHub.

🌀 Prototyping outside the box

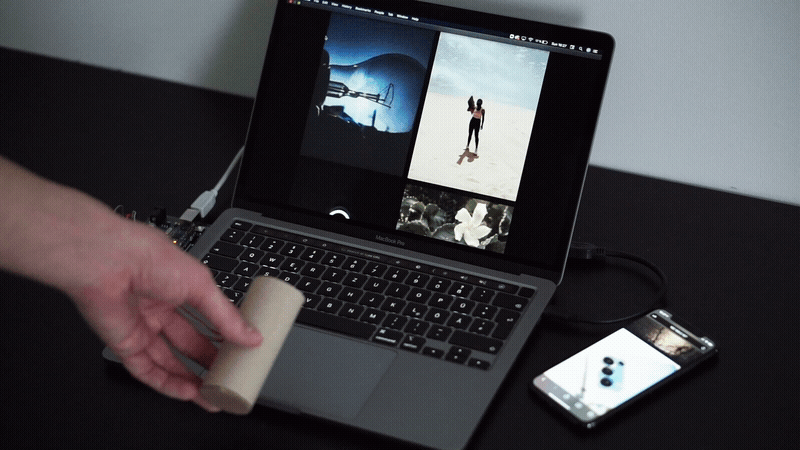

Instead of making a single element within the app react to our data, we can make the whole page reactive instead. This way, new input modalities could be prototyped. In this example, I’ve used a 3-axis accelerometer and made the whole page react to it. Or in other words: the root div of the page has a transform: translateY CSS property whose value depends on the accelerometer’s tilt value.

🔃 Bidirectional communication

In our frontend code, we are not restricted to just reading data. We can write data, too! Our socket server allows for bidirectional communication; this means that we can modify data in our frontend and emit it to our node backend, which in turn hands it over to our Arduino board and sensor.

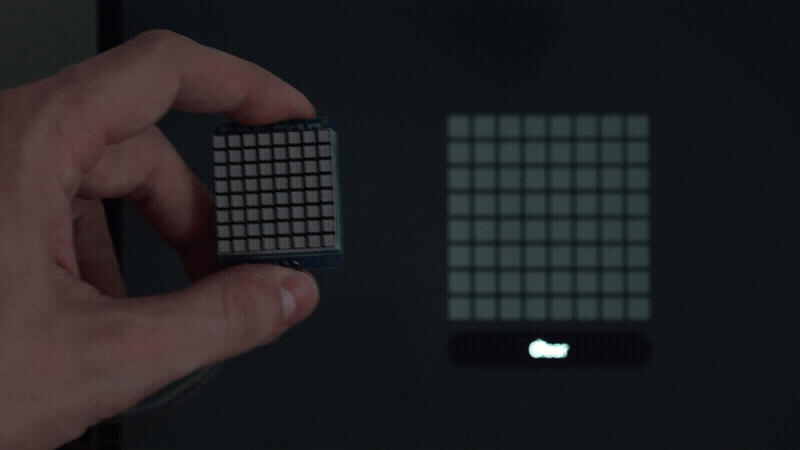

In the example above, I hooked up an 8x8 LED matrix to an 8x8 array of checkboxes. Each checkbox controls a single LED in the matrix and et voilà, we have a small digital pixel editor that reaches out into the physical world.

I hope this article opens the door for a modern approach to physical prototyping. If you have questions, recommendations or just want to share what you’ve built, I’d love to hear about it — don’t hesitate to shoot me a message.

Cheers 👋
