Setting up typography variables in Figma

Figma finally supports typography variables after teasing us since last June. During the ‘Framework by Figma’ in April, they announced multiple features that made it feel like a mini Config.

Though I’m always excited by Figma’s new features, it can take me a minute to sit down and learn how to use them. This is especially true when I need to change my thinking about the structure of foundational styles.

Typography variables in Figma

Learning how to apply typography variables wasn’t difficult. After some initial trials and errors, I started to see the value that typography variables bring.

You can control and bulk-edit your typography with a few clicks. Do you need to change the letter-spacing for all text styles by 0.25px? Instead of having to individually change each style, typography variables gives you the power to change it in one place. Then, it takes effect in all instances.

Let’s dive into setting up some typography variables so you can gain this power and save some time down the road.

Table of contents:

1. Set up text styles (if you don’t already have them)
2. Variables for font families
3. Variables for font weights
4. Variables for font sizes
5. Variables for font line-heights
6. Typography modes
7. Variable scoping

1. Set up text styles (if you don’t already have them)

I hate to break it to you, but you can’t create typography variables without an existing text style. After creating all my color variables natively in the local variables popup, I assumed I could do the same with typography. (Figma hit me with the “No you cannot.”)

So before you can dive into creating typography variables, you must create some text styles. If you have a Design System, you probably have existing text styles and can skip this step.

Steps:

1A. Create a text layer and modify the font family, weight, size, etc.

Design text styles

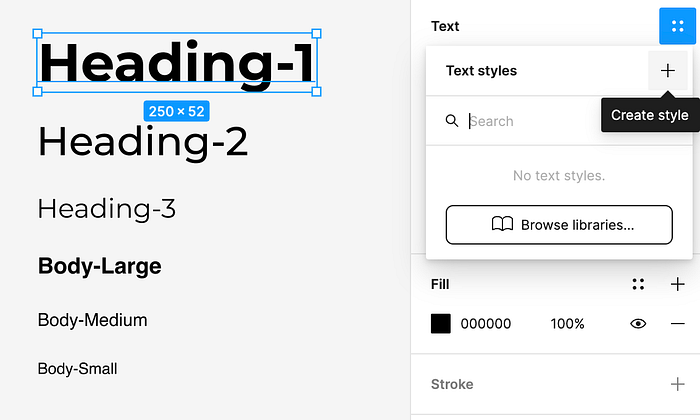

1B. Select the grid icon next to the ‘Text’ property → Select the plus (+) icon in the ‘Text styles’ popup

Create a text style

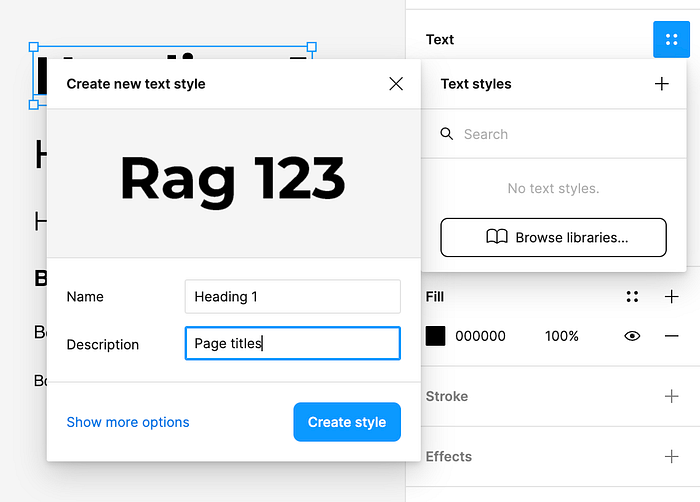

1C. Name the style and give it a description (how to use the style)

Name and describe the text style

1D. Repeat 1A to 1C for all needed text styles

Note: You will be able to see all created text styles in the file’s design panel.

Local styles appear in the design panel

^ Back to table of contents

2. Variables for font families

Changing font families for an established Design System or company is pretty rare, but this will expedite the process if it ever happens.

If anything, it’s good practice to have the font family documented in the local variables so all text properties are controlled by variables.

Steps:

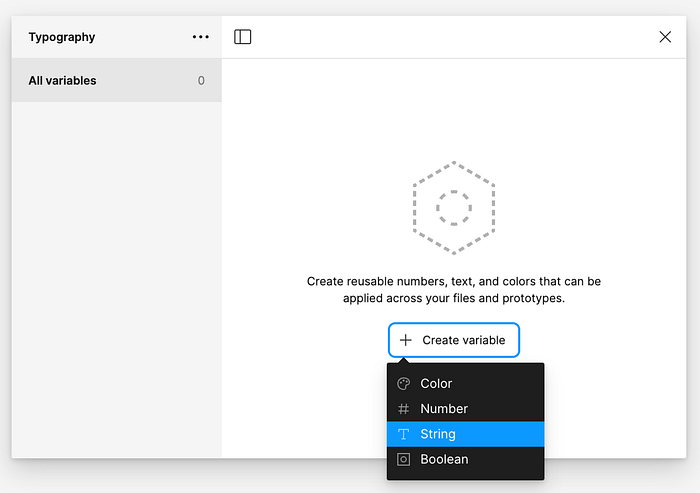

2A. Open the local variables popup → Select ‘Create variable’ → Select ‘String’

Note: Use a string variable since the font family is a named value.

Select ‘String’ for the variable type

2B. Name the variable (I.E., Font/ Family/ Headings)

Note: The forward-slash (/) creates automatic groups in Figma.

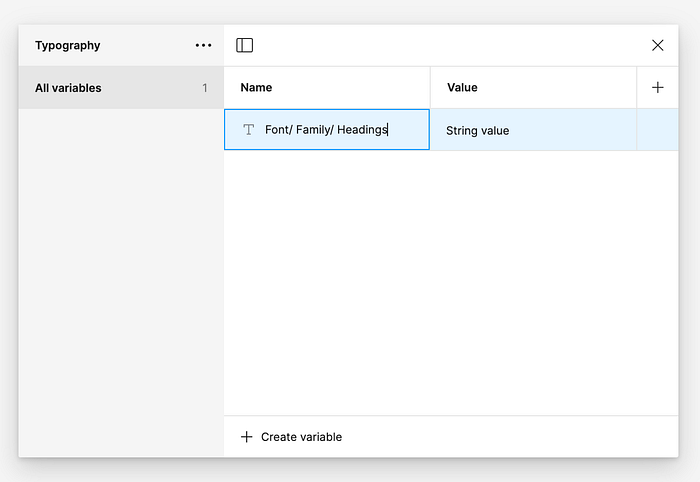

Name the font family

2C. Repeat 2A to 2B for all font families (you may only need one)

Tip: Use ‘Shift+Enter’ to duplicate variables so you don’t have to type “Font/ Family/ Heading” each time.

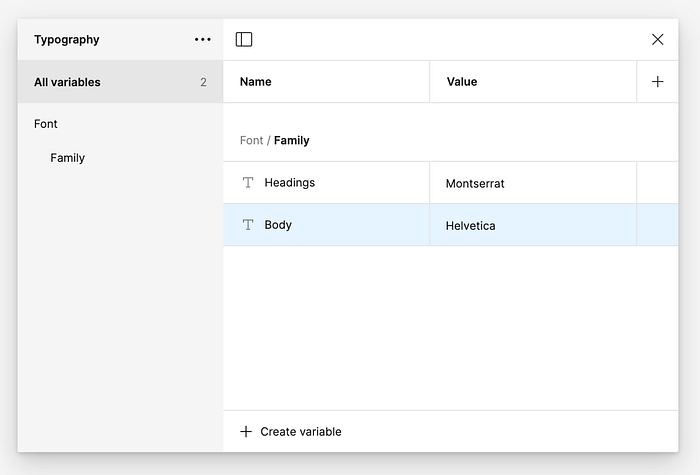

Font families for headings and body text

2D. Link the font family variables to text styles

Select ‘Edit style’ next to the text style → Select the font family → Select ‘Apply variable’ button → Select the font family variable

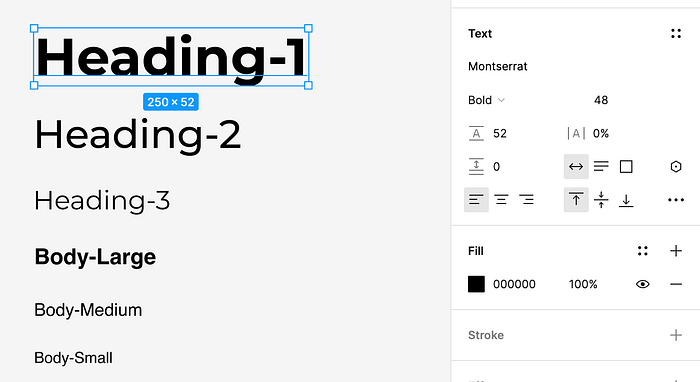

Note: A grey pill with the variable name will replace the font family name in the text style.

Apply the font family variable to a text style

2E. Repeat 2D for all text styles

To change the font family in the local variable, you must manually type in the font name verbatim. Also, make sure the design file has the font family included or the change won’t do anything.

^ Back to table of contents

3. Variables for font weights

Font weights can use ‘String’ or ‘Number’ variables depending on how you name them. If naming numerically, such as 100 to 800, use a number variable. If naming with an alias, such as Thin to Black, use a string variable. For this demo, I used a string variable.

Steps:

3A. Create a ‘String’ variable and name it (I.E., Font/ Weight/ Bold)

Create string variables for font weight

3B. Repeat 3A for all font weight variables

Note: Make sure naming is consistent and creates a clear hierarchy.

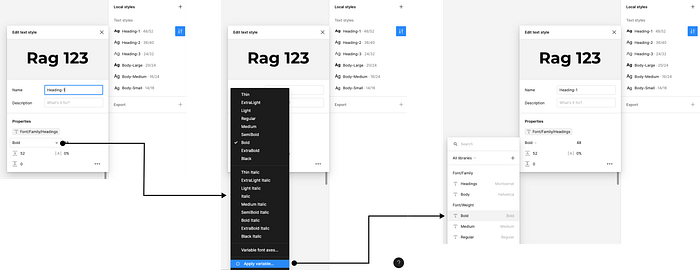

3C. Link the font weight variables to text styles

Select ‘Edit style’ next to the text style → Select the font weight dropdown→ Select ‘Apply variable’ at the bottom → Select the font weight variable

Apply the font weight variable to text styles

3D. Repeat 3C for all text styles

Important note: The font weight variable name must match the font family’s given weight names. For instance, let’s say I changed the font weight variable name from ‘Bold’ to ‘XBold’. The font family has a font weight name for ‘Bold’, but not ‘XBold’.

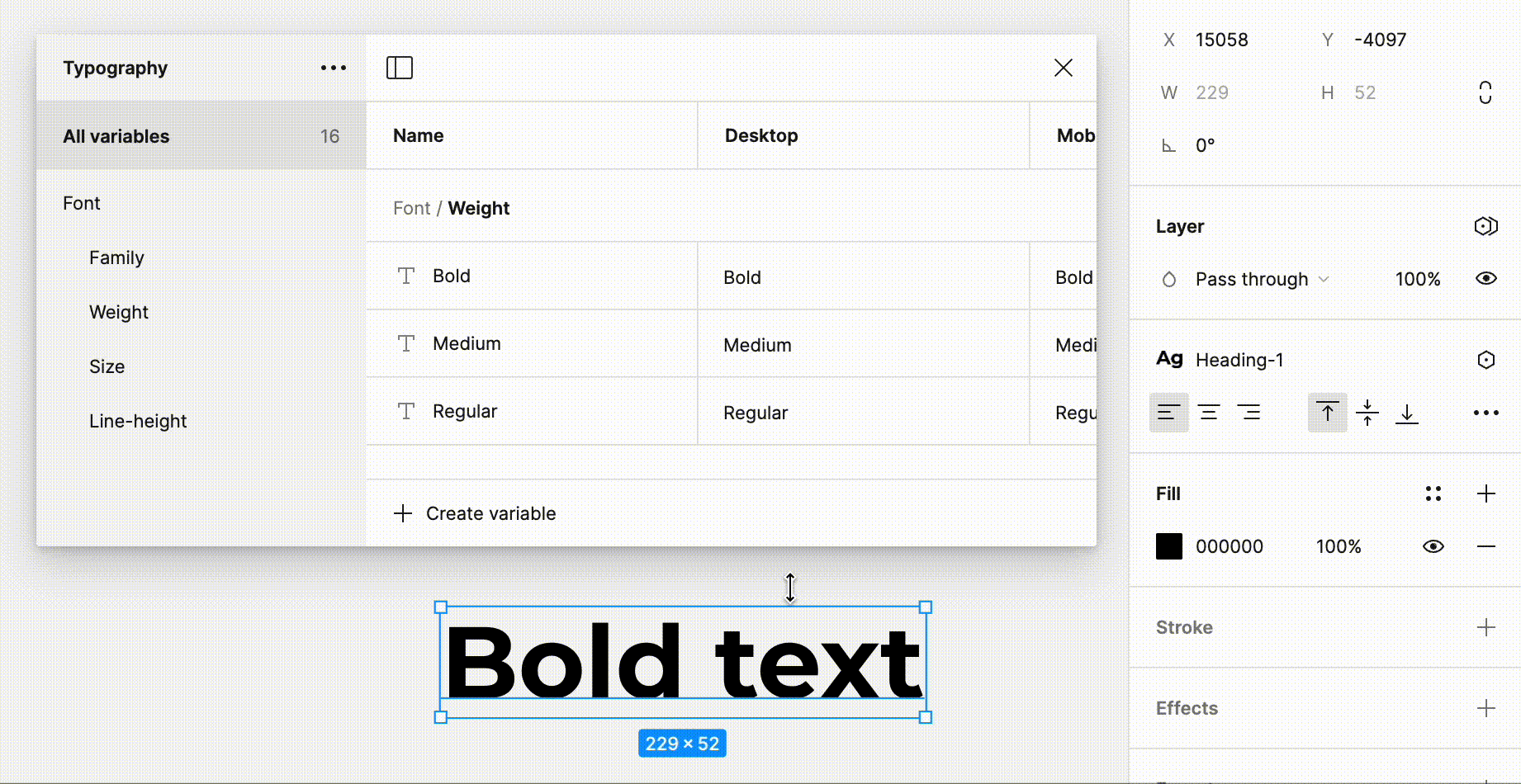

Choose variable names for font weights that match the font family

The variable change will not do anything to the text styles because it’s not correctly mapped to the font family’s nomenclature. So when naming variables, make sure they match the font family’s weights.

^ Back to table of contents

4. Variables for font sizes

Now let’s make some number variables. Similar to font weights, font sizes can have different names depending on your typography needs. For this demo, I’ll use t-shirt sizes.

Steps:

4A. Create a ‘Number’ variable and name it (I.E., Font/ Size/ XXL)

4B. Update the variable’s value with the correct font size

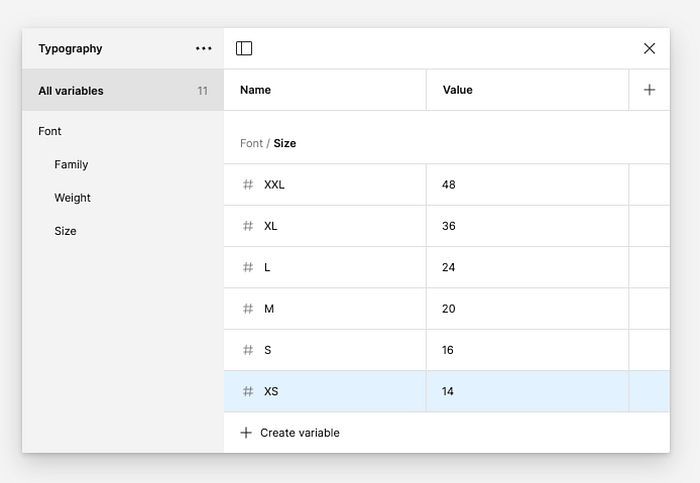

Create t-shirt sizes for font size variables

4C. Repeat 4A to 4B for all font size variables

4D. Link the font size variables to text styles

Select ‘Edit style’ next to the text style → Select the font size dropdown→ Select ‘Apply variable’ at the bottom → Select the font size variable

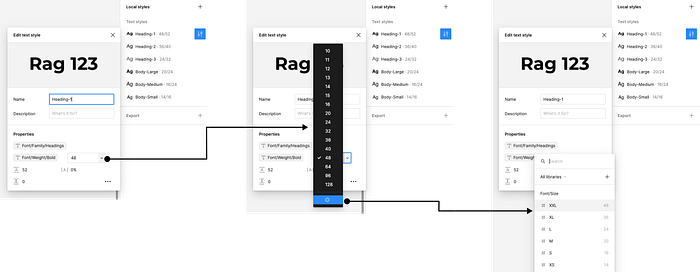

Apply font size variables to text styles

4E. Repeat 4D for all text styles

^ Back to table of contents

5. Variables for font line-height

Setting up variables for line-height might feel identical to font sizes… because it is. Whichever naming conventions chosen for font sizes should be used for line-heights to maintain consistency. So, I’ll continue to use the t-shirt sizes.

Steps:

5A. Create a ‘Number’ variable and name it (I.E., Font, Line-height, XL)

5B. Update the variable’s value with the correct line-height

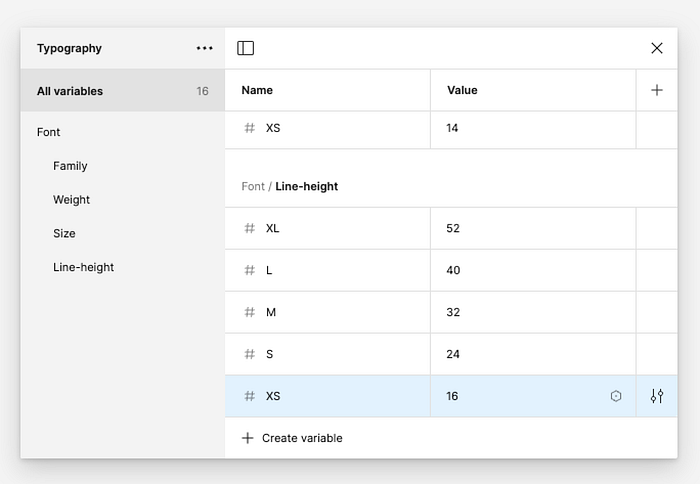

Create t-shirt sizes for line-height variables

5C. Repeat 5A to 5B for all line-heights

5D. Link the font line-height variables to text styles

Select ‘Edit style’ next to the text style → Select ‘Apply variable’ next to the line-height value → Select the font line-height variable

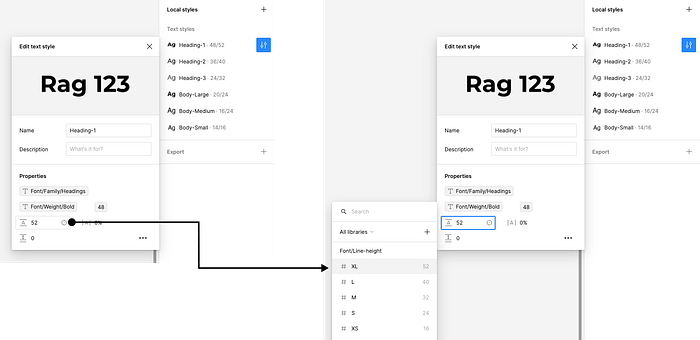

Apply font line-height variables to text styles

5E. Repeat for all text styles

^ Back to table of contents

6. Typography modes

After creating the variables, modes may be needed for responsive typography styling. For instance, font sizes are typically bigger on desktop versus mobile screens. You can create modes so the variables do the work for you.

For this demo, I named the existing mode for the variables ‘Desktop’, and the new mode ‘Mobile’.

Steps:

6A. In the local variables popup, select the ‘New variable mode’ or plus (+) icon to create a new mode

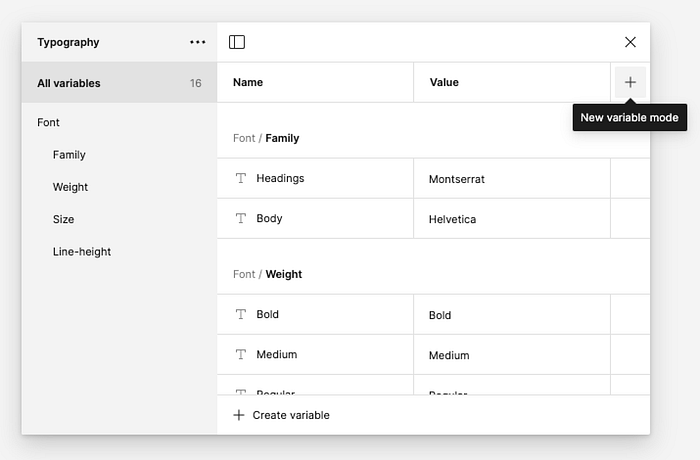

Create a new variable mode in the local variables popup

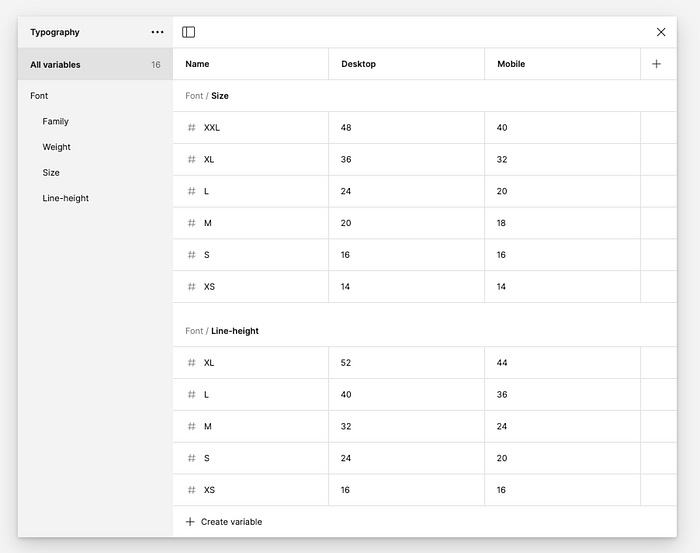

6B. Make needed changes to the variable’s values in the new mode

Note: Some variables will remain the same across modes.

Make variable changes in the new mode

6C. Apply the variable mode to a frame in the canvas

Select the frame → Go to the Layer property in the design panel → Select ‘Change variable mode’ → Select the variable collection then mode

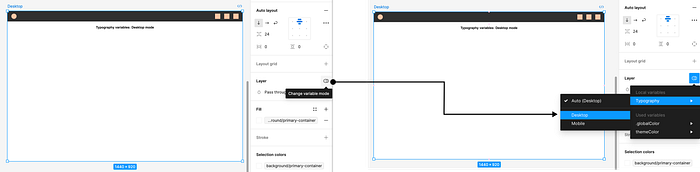

Apply the variable mode to a frame

6D. Repeat step 6C for a mobile-sized frame in the canvas

6E. Test the variable mapping

Typography modes help update font styling automatically

^ Back to table of contents

7. Variable scoping

Scoping for typography variables was recently released at the end of May. So if you already created some typography variables after Framework by Figma, it’s time to go back and add scoping to them.

Scoping prevents misuse and helps the find-ability of specific variables. For instance, you wouldn’t want to use line-height variables for font sizes or vice-versa.

Steps:

7A. Open local variables and select ‘Edit variable’ for one variable

Edit a variable in the local variables popup

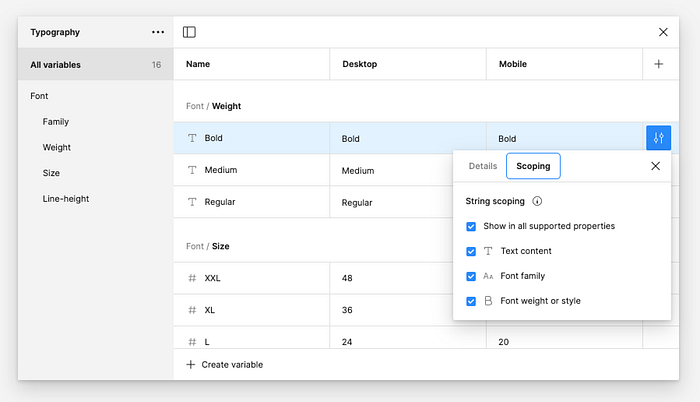

7B. Swap to the ‘Scoping’ tab in the edit menu that appears

View the ‘Scoping’ tab to see applied properties

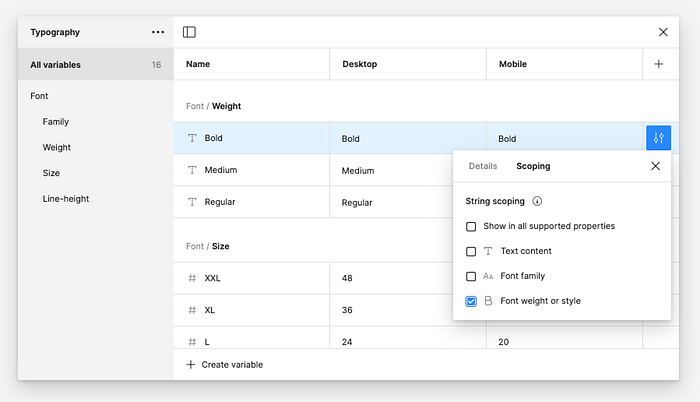

7C. Unselect properties that the variable doesn’t apply to

(I.E., Font weight doesn’t apply to font family.)

Unselect properties the variable doesn’t apply to

7D. Repeat 7C for all variables

Note: Number variables have more properties they can be applied to, so more properties have to be unselected.

Scope all typography variables

7E. Check the variable scoping

When selecting a variable for line-height, only the line-height variables appear.

Only scoped variables appear for their corresponding properties

^ Back to table of contents

That wraps up just a few of the things you can do with typography variables! Pretty powerful, right?

I demoed variables for font family, weight, size, & line-height, but you can do more. Variables for letter and paragraph spacing can also be created using number variables following the same steps.

I bet there’s more coming with typography variables. Maybe we will get the ability to add more properties like letter casing or alignment? It is the month of June, so 2024 Config is right around the corner.

We will see in less than two weeks. Stay tuned!
